Push to Open Drawer Set Low AXISPRO Slim Box System A86mm Height
All-purpose application, the AXIS PRO Push to Open drawer system is a solution for every type of interior.
The Axis Pro Push to Open drawer has a high durability certified for 60,000 cycles.
The mechanism with synchronization of opening guarantees smooth opening of the drawer by pressing on any place on the front of the drawer.
We provide a wide range of design options, including 5 heights of standard and internal drawers
The drawer side panel, only 14 mm wide side allows maximum use of the internal space of the drawer.
The load on the drawer allows you to place up to 40 kg of various products in it.
Installation of the drawer is easy thanks to the convenient adjustment on the inside of the drawer.
Tilt adjustment and horizontal adjustment in the range of +- 2 mm.
AXIS PRO has also a simple 2 plane front adjustment – vertical and horizontal, which increases the comfort of the system installation.
Additionally, the full extension allows access to the entire contents of the drawer
Push-to-Open Drawer Set Low AXISPRO Slim Box System A86mm
Opening: Push to Open
Extension: Full Extension
Further Vertical and Horizontal adjustment of drawer front
Front panel angle adjustment
Allowable load – 40 kg
Colour: Anthracite
Side Heights A: 86 mm
Minimum Height Require: 115 mm
Available lengths: 350 mm, 400 mm, 450 mm, 500 mm
Drawer type: Standard or inner
Material: Steel
Set contains:
– 2x drawer sides
– 2x soft close drawer runners
– 2x front fixings
– 2x back brackets
– 1x Sync Rod -NOT INCLUDED-(require if your drawer is wider that 500mm)

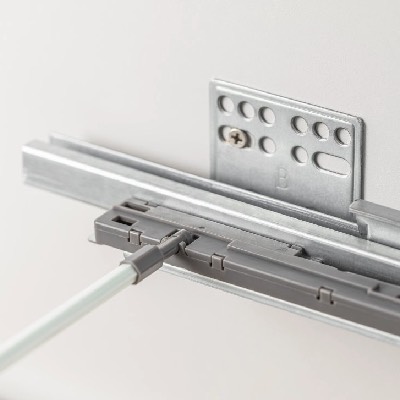

Purchase from here AXISPRO Synchronisation Linkage
Bottom/Base, back(16mm board) and front panels are not included
Fitting instruction AxisPro-P2O
