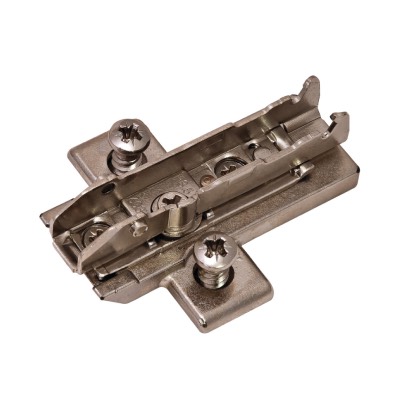

Tiomos Cruciform Mounting Plate 4 Euro Screws Fixing

Description

Tiomos Cruciform Mounting Plate 4 Euro Screws Fixing.

Tiomos Cruciform Mounting Plate Euro-Screws
Our hinge systems provide the perfect solution for every application, no matter whether it’s for wood, glass, mirror or thin doors, aluminium frame doors, doors with mitres on all four sides, rebated doors, doors with or without handles, inset or overlay doors, doors with invisible or screw mounting, or doors with Tipmatic or Soft-close.
Furthermore, for every hinge to work and operate will require mounting plates. Mounting Plates

Tiomos Cruciform Mounting Plate Euro-Screws offers great scope for creative design in furniture construction.
In addition, the mounting plate is used to attach the Tiomos furniture hinge from GRASS to the furniture body.
Additionally, the Tiomos furniture tape is clipped onto the base plate using clipping technology.
In this way, the furniture door can be easily installed and removed if necessary.

Grass Mounting Plate Cruciform 4 Point Fixing Tiomos Click On System Hinges
Application: For TIOMOS click on fixing hinges only
Version: Two part plate with ± 2 mm height adjustment via worm screw
Distance: 0mm, 2mm, 3mm
Material: Steel
Colour/finish: Nickel
For drill hole Ø 5 mm
Drilling depth: 12 mm
Screw length: 13.5 mm
Screw distance: 32 mm
Edge distance: 37 mm
Adjustment facility:
In addition Height adjustment Via worm gear ±2 mm
Side adjustment ±2 mm
Depth adjustment ±2 mm
Mounting plate version: For screw fixing with pre-assembled Euro screws
Model: Tiomos
Material: Steel

Finally, order Hospa screw and dowel fixing or wood versions available from other listing Mounting Plates
