Hawa Clipo 36 H IS Sliding Door System 2 Doors

Description

Hawa Clipo 36 H IS Sliding Door System 2 Doors.

Hawa-Clipo 36 H-IS Sliding Door
Fitting for 2 top-running wooden doors up to 36 kg, with screwed on or groove mounted running track.
With soft and self closing mechanism.
The ease of operation of sliding door fittings is determined by the quality of the rollers.
Hawa have re-invented the roller technology for Hawa-Clipo 16 Hawa-Clipo 36 H IS
Soft running – Optimised roller geometry and new high-performance plastic
Extremely quiet – Minimum running noise thanks to low rolling resistance
Durable – Long lasting thanks to new high-performance plastic.
Smooth, silent running with Comfort Roller and soft and self closing system for different door weight
Efficient thanks to tool-less door installation as well as easy, intuitive adjustment

Design type: IS Inslide
Maximum door height: 2200 mm
Maximum door width: 1000 mm
Door thickness: 19–25 mm
Soft close: Min. width 260mm for one way soft close. Min. 480mm width for two way soft close.

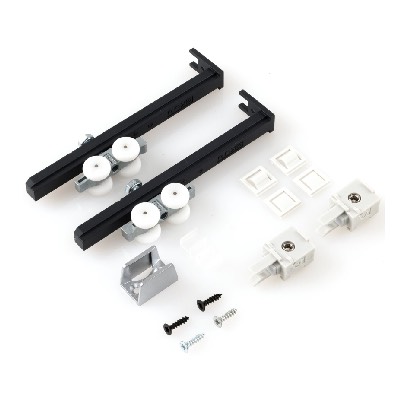

Set Supplied with:
2x Track stopper for top tracks, grey plastic
4x Running gear, clip on, height adjustable +2/-1 mm black plastic rollers, metal axle
4x Housing, screw fixing, for use with running gear, grey plastic
1x Door follower, grey plastic
2x Guide, press fit in Ø 8 mm hole, black plastic

Order Separately from list:
Track Single 2500 or 3500 mm
Track Double 2500 or 3500 mm
Guide if you require 2500 or 3500
Soft Close mechanism 15k or 26kg

If you need single door system click here Hawa-Clipo 26 H IS
